Description

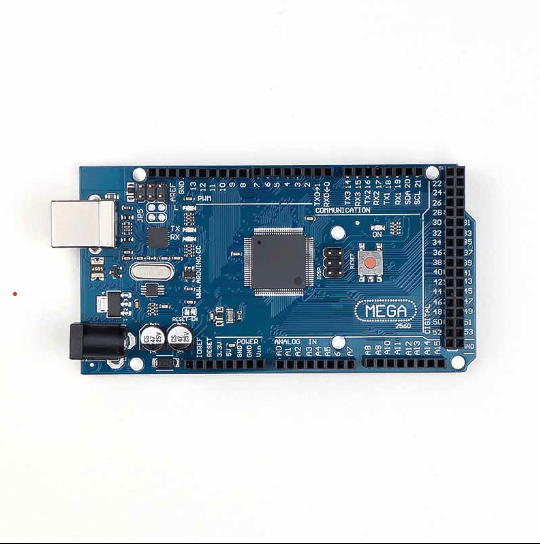

The Mega 2560 ATmega2560-16AU Board is a powerful and versatile microcontroller board that is fully compatible with Arduino. It offers a large number of digital and analog pins, making it suitable for a wide range of projects, from simple electronics experiments to complex robotics and automation systems. The board comes with a USB cable for easy connection to your computer.
Arduino Mega 2560 follows Open-source principles, which means you can freely download the development environment and any associated resources.
Ideal for project work and often used in schools, teaching, motor control, robotics, and similar applications; the Arduino platform allows for rapid application development using either Java (cross-platform) or Processing (a C derivative used to write sketches using Arduino IDE downloadable from Arduino.cc website.)
Input voltage should be limited to 6 ~ 12V, but if the voltage supplied is less than 6V, I / O port may not be supplied to a voltage of 5V, and therefore readings may become unstable. If the voltage is greater than 12V, the regulator device may overheat causing damage to the control board. It is therefore recommended that you supply between 6.5 and 12V, utilizing typical power supplies of 7.5V or 9V.
The Mega 2560 ATmega2560-16AU Board plus USB Cable compatible with Arduino is fully compatible with the Arduino software and has complete hardware compatibility with the Arduino Shield high-performance processor and enough memory to handle even complex solutions.
Features :
- Bootloader – to allow downloading of ‘sketches’ via USB without having to go through other external writers.
- Powered from USB or via external PSU (not supplied). The device will automatically switch between power inputs.
- Heavy gold plate construction.
Package Includes :

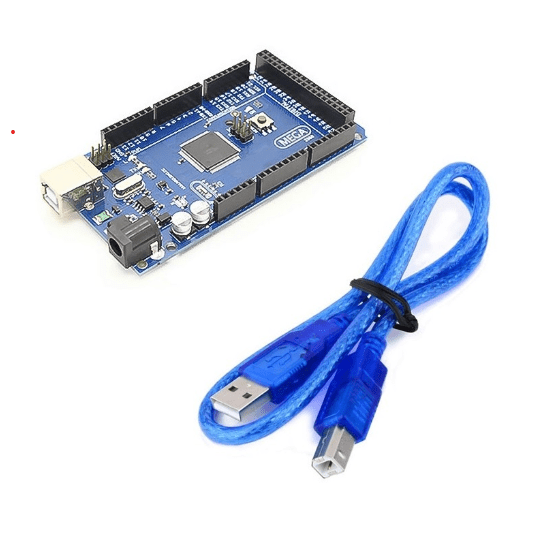

1 x Arduino Mega 2560 Board
1 x USB Cable (Blue)
| Item Type: | Dev. Board |
| Board Type: | Mega |
| With Cable (Y/N): | Y |
| Chip Type: | ATmega2560 |
| Analog I/O Pins | 16 |
| Architecture | AVR |
| Clock Speed | 16 MHz |
| Color: | Blue |
| Digital I/O Pins | 54 digital input / output terminals (14 of which have programmable PWM outputs) |
| Flash Memory: | 256 KB |
| Input Voltage (V) | 07-Dec |
| Microcontroller | ATmega2560 |
| Operating Voltage (VDC) | 6 ~ 12 |
| PWM Output Pins | 14 |
| Weight (g): | 35 |
| Dimensions (L x W x H) mm | 110 x 53 x 15 mm. |
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 5 × 3 × 2 cm |
15 Days Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
