Description

The MAX232 device is a dual driver/receiver that includes a capacitive voltage generator to supply EIA-232 voltage levels from a single 5-V supply. Each receiver converts EIA-232 inputs to 5-V TTL/CMOS levels. These receivers have a typical threshold of 1.3 V and a typical hysteresis of 0.5 V, and can accept ±30-V inputs. Each driver converts TTL/CMOS input levels into EIA-232 levels. The driver, receiver, and voltage-generator functions are available as cells in the Texas Instruments LinASIC library. The MAX232 is characterized for operation from 0°C to 70°C. The MAX232I is characterized for operation from –40°
Note: Image may vary from actual product in terms of Manufacturer/Brand name according to the availability.
________________________________________
Features:
1. Operates With Single 5-V Power Supply
2. LinBiCMOS Process Technology
3. Two Drivers and Two Receivers
4. ±30-V Input Levels
5. Low Supply Current . . . 8 mA Typical
6. Meets or Exceeds TIA/EIA-232-F and ITURecommendation V.28
7. Designed to be Interchangeable WithMaxim MAX232
8. ESD Protection Exceeds JESD 22– 2000-V Human-Body Model (A114-A)
9. Applications: TIA/EIA-232-F, Battery-Powered Systems Terminals, Modems.

________________________________________
Package Includes:

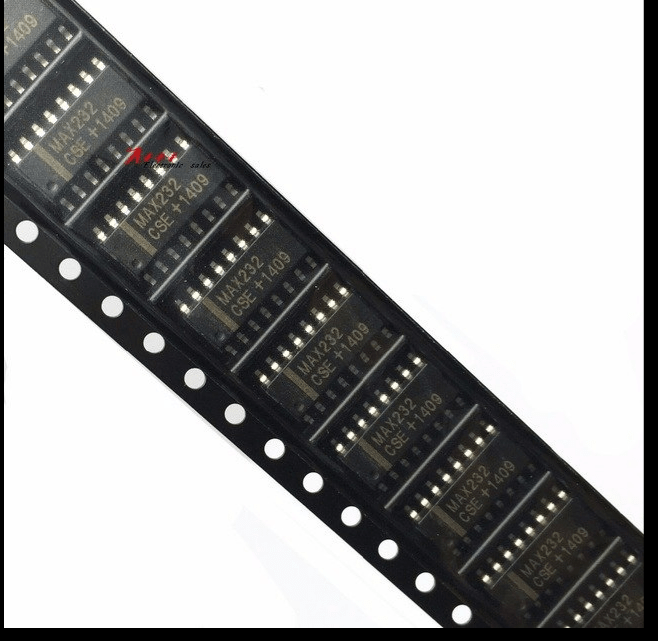

1 x MAX232CSE SOIC-Narrow-16 RS-232 Interface IC
Case/Package: SOIC
Min Supply Voltage 4.5V
Max. Supply Voltage (V) 5.5
Max. Operating Current (mA) 10
Product Type RS-232 Interface IC
Data Rate 120 kb/s iver
No. of Receivers 2 Receiver
No. of Drivers 2 Driver
Propagation Delay Time 10 us
Operating Temperature (°C) 0 to 70
Dimensions (L x W x H) mm 10 x 4 x 1.5
Mounting Type: SMD/SMT
Shipping Weight 0.1 kg
Shipping Dimensions 8 × 4 × 2 cm

15 Days Warranty Against Sealed Product
