Description

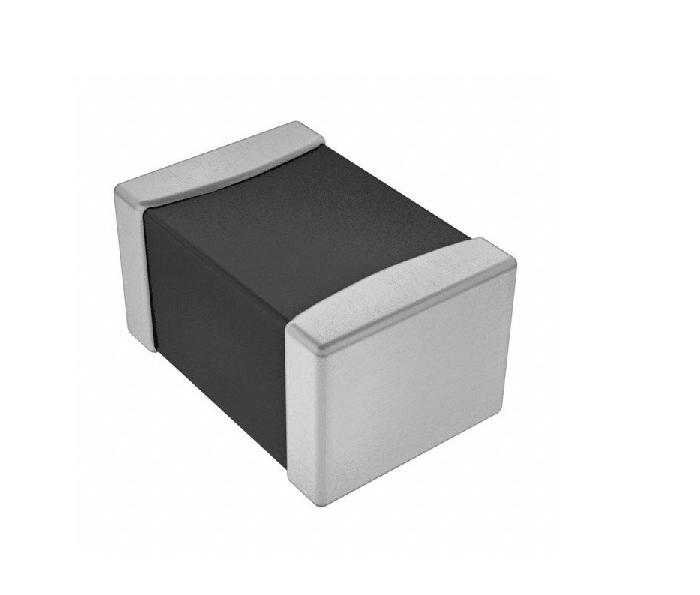

LQM21FN100N00L-Murata Electronics-10 µH Shielded Multilayer Inductor 60 mA 650mOhm Max 0805 (2012 Metric). The LQM21FN100N00L is a shielded multilayer inductor from Murata Electronics. It is designed for applications where low resistance, compact size, and stable inductance are important, particularly in power supply circuits, signal filtering, and decoupling.
________________________________________
Specifications:
1. Inductance: 10 µH
2. DC Resistance: 0.65 ohms
3. Current Rating: 60 mA
4. Package Size: 0805
5. Shielding Type: Shielded
6. Operating Temperature: -40°C to +125°C
________________________________________
Package Includes:
1 x LQM21FN100N00L-Murata Electronics-10 µH Shielded Multilayer Inductor 60 mA 650mOhm Max 0805 (2012 Metric)
Manufacturer: Murata
Inductance: 10uH
Resistance (Ohm): 0.65
Case/Package: :0805
Operating Temperature (°C) -40 to 125
Shipping Weight 0.01 kg
Shipping Dimensions 7 × 5 × 2 cm
1 Year Warranty
________________________________________
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
________________________________________
What voids the warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
