Loom Solar 55-watt mono perc panels are made of A-grade mono perc cells and ultra-cleared tempered glasses that do not break easily and give 18% higher efficiency even in low light and cloudy weather. Loom solar is the only company in India that makes mono panels using perk cells in 12-volt design. The additional features include 9 busbars, 36 cells and 25 years performance warranty. IP 68-rated junction box is given with MC4 compatible cable connector for higher module efficiency. Before buying, you should know these features:
- Light Weight & Easy to Carry: 4 kg.

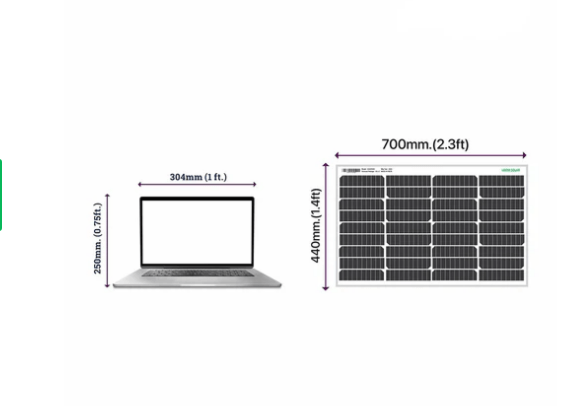

- Compact Design: 430 x 665 x 35 mm ( 1.42 x 2.14 ft.)
- Multi-Purpose Use Case: Home Lighting System, Science Projects, Street Light, Traffic Control Device, Telecom Power, etc.
- Premium Quality: Strong Frame & Glass
- Delivery: PAN India Delivery within 2-3 days
PRODUCT SUMMARY
| Brand | Loom Solar |
| Output Power | 55 Watts |
| Operating Voltage | 12 Volt |
| Panel Technology | Mono Perc |
| Manufacturer Warranty | 10 years on Manufacturing defects |
| Performance Warranty | 25 Years |
| MC4 Connector | Not Included |
| Additional Features | A+ Grade, anti-PID Mono cells |
| Cell Conversion efficiency > 19% | |
| ultra-cleared tempered glasses |

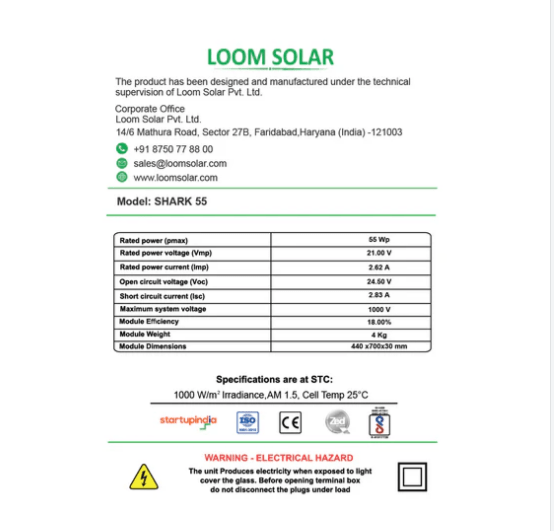

Technical
| wattage (Wp) | 55 watts |
| voltage at max power | 20.0 volts |
| current at max power | 2.25 amps |
| open circuit voltage | 25.36 volts |
| short circuit current | 2.40 amps |
| Number of Cells | 36 |
Shipping Details
| Weight | 4 Kg |
| Dimensions L x W x H | 430 x 665 x 35 mm |
