Description

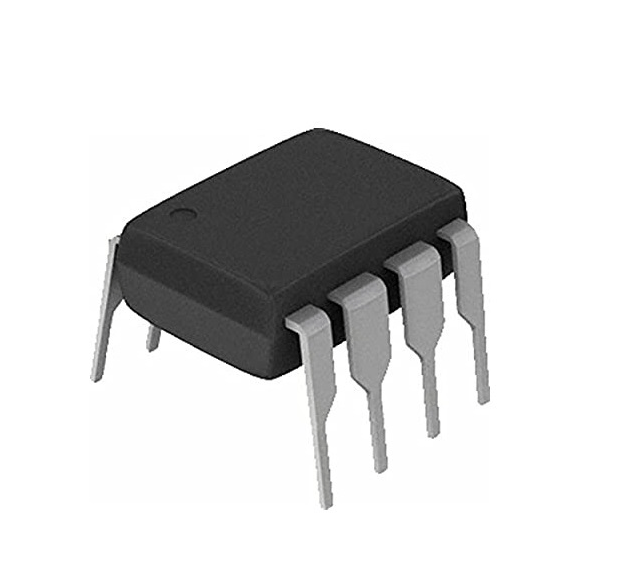

The LM311 is a voltage comparator IC in a DIP-8 package, offering fast response and low power consumption. It features an open-collector output, making it compatible with various logic levels. Ideal for applications like PWM, zero-crossing detection, and overvoltage protection, the LM311 provides excellent performance with a wide supply voltage range.
________________________________________
Note:
1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.

________________________________________
Features:
1. Open-Collector Output: Compatible with various logic levels.
2. Wide Supply Voltage Range: Operates from 3V to 40V.
3. Low Power Consumption: Efficient for battery-powered applications.
4. Fast Response Time: Suitable for high-speed switching.
5. Low Input Offset Voltage: Ensures accurate voltage comparison.
6. Compact DIP-8 Package: Easy to integrate into circuits.
7. High Noise Immunity: Reliable performance in noisy environments.
________________________________________
Package Includes:
1 x LM311 Voltage ComparatorIC DIP-8 Package
Item Type: IC.
Model Voltage Comparator IC
Input Supply Voltage (V) 3V to 40V.
Color: Black
Material: ‎Plastic
Shipping Weight 0.001 kg
Shipping Dimensions 4 × 4 × 1 cm
