Description

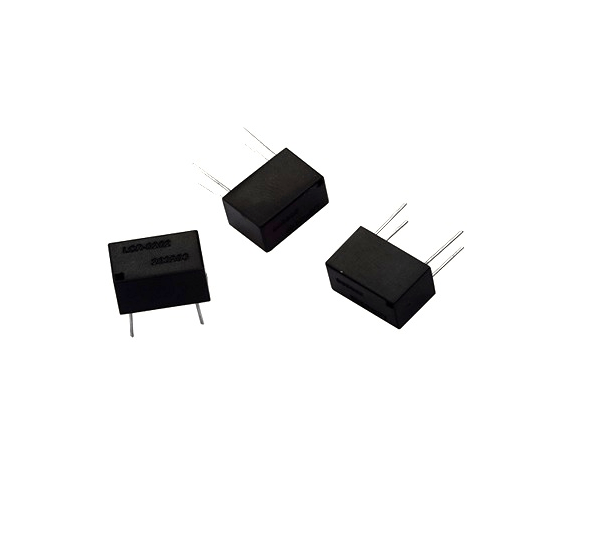

LCR-0202 Analog Optocoupler is an Optoelectronic device that uses the current changes to control the resistance change. It is a Linear optocoupler which through the strictly selected, aging, testing. It made up of CDS and LED. The package type for LCR-0202 is DIP-4(cuboid small package). It is widely used in audio power amplifier protection and control.
It is recommended that the welding should be made at 4mm of lead wire far away from the optoisolator’s seat, and the welding be completed in the shortest possible time.
________________________________________
Features:
1. The pure resistor and non-polarity output
2. Wide range of analog liner resistance, “on” at the low resistance. “off” at high resistance
3. Simple circuit configuration suitable for DC and AC use
4. Input to output isolation, and low distortion coupling
________________________________________
Package Includes:
1 x LCR-0202 Analog Optocoupler
Manufacturer: Generic
Model Series: LCR- 0202 Series
Case/Package: DIP 4
Input current 0- 20mA
Input Voltage 1.6- 2.5Vdc
Light Resistance: 50Ω – 1KΩ @20mA- 0.01mA at Output
Dark Resistance: 1Ω – 10MΩ @10 seconds off later at Output
Response Period <2.5mS Insulating Voltage >2500VRMS
Operating Frequency (Hz): <300KHz Max. Power 100mW Dimensions (mm) : 12.5*7.5*8.0 Shipping Weight 0.01 kg Shipping Dimensions 6 × 3 × 1 cm 15 Days Warranty ________________________________________ This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects. ________________________________________ What voids warranty: If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
