Description

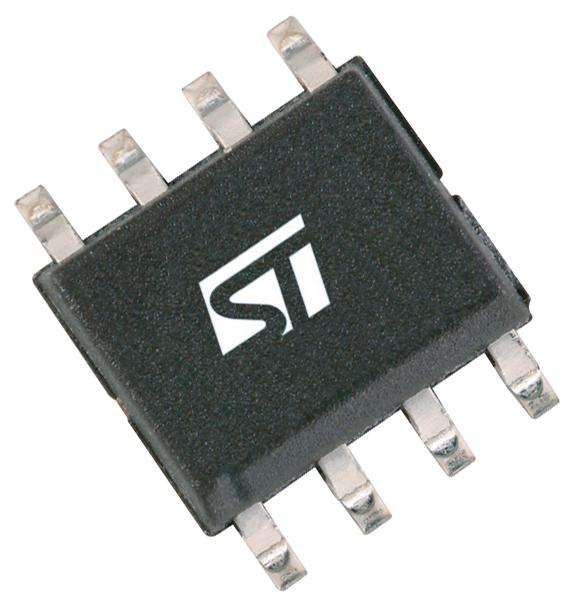

The STMicroelectronics USB6B1RL is an ESD protection device designed for USB ports. ¹ It’s an array type, meaning it contains multiple ESD protection diodes, all within a single SOIC-8 package. ² This device offers robust protection against electrostatic discharge (ESD) events, which can be very damaging to sensitive electronic equipment. It features a breakdown voltage of 5.25V and can handle a peak pulse power of 500W, making it suitable for demanding applications

Specifications:

Clamping Voltage Vc Max: –
No. of Pins: 8Pins
Power Dissipation Pd: 500W
Automotive Qualification Standard: –
Diode Case Style: SOIC
Operating Voltage: 5.25V
Product Range: USB6B
SVHC: No SVHC (23-Jan-2024)

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x USB6B1RL-STMICROELECTRONICS-USB6B1RL-ESD Protection Device, Array, SOIC, 8 Pins, 5.25 V, 500 W, USB6B

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
