Description

This is a complete starter kit for Arduino enthusiasts, featuring an UNO R3 development board based on the ATMega328P microcontroller and a CH340G USB interface chip. It’s fully compatible with the Arduino IDE and comes with a USB cable for easy connection to your computer. This kit is perfect for beginners learning about microcontrollers, electronics, and programming, as well as experienced users looking for a reliable and affordable platform for prototyping and development. The UNO R3 is a versatile board suitable for a wide range of projects, from simple LED blinking to more complex applications involving sensors, actuators, and communication interfaces. Start your Arduino journey today with this convenient and cost-effective package.

This is UNO R3 CH340G ATMega328P compatible with Arduino + Cable  For Uno R3. A basic Arduino kit with all the components included eliminating the time our customers for finding and buying Arduino ant its basic accessories.

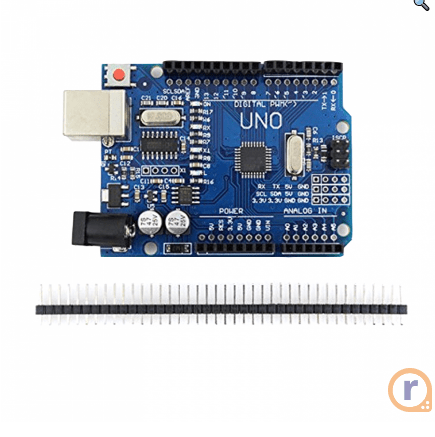

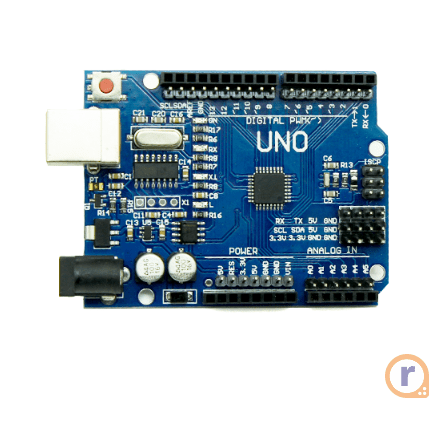

Uno R3 CH340G ATmega328p Development Board is the low-cost version of the popular Uno R3 Arduino. It is assembled with the CH340 USB to Serial converter chip, instead of using an Atmega16U2 chip.

We have used plenty of these low-cost Arduino boards with CH340 chips, and have found them to work perfectly. The only time the CH340 chip is used is during programming and when using the serial output of the USB port. During normal operation, this board is identical to the more expensive version without CH340 chip.

Main changes from the older version:

1. Two rows of the holes for the pins (Male and Female). So it can be connected with normal Female Jumpers.
   2. Additional 3 rows of the holes for wiring.
   3. Changes to the DIP package of ATMEGA328P to flat package.
   4. CH340G replace ATmega16U2

How to use:

1. Download the IDE Arduino
   Link: http://arduino.cc/en/Main/Software(Copy to open)
   2. Download the USB chip driver
   Link: http://www.5v.ru/zip/ch341ser.zip(Copy to open)
   3. Plug in UNO development board, the driver will be installed automatically
   4. Select the UNO from the die
   5. Select the COM port
   6. The best choice first, Arduino comes with routine procedures, burn into it
2. Specifications and Features :

1. UNO R3 Arduino CH340G

   1. Microcontroller ATmega328 (SMD) – Interface CH340G
   2. Operating Voltage: 5V
   3. Input Voltage (recommended): 7-12V
   4. Input Voltage (limits): 5-20V
   5. Digital I / O Pins 14 (of which 6 provide PWM output)
   6. Analog Input Pins: 6
   7. DC Current per I Pin: 40 mA
   8. DC Current for 3.3V Pin: 50 mA
   9. Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
   10. SRAM: 2 KB (ATmega328)
   11. EEPROM: 1 KB (ATmega328)
   12. Clock Speed: 16 MHz

2. Cable for UNO Arduino:

   1. Length 1 foot
   2. Hot Pluggable.
   3. Fully compatible with the PC.
   4. Molded strain relief and PVC overmolding to ensure a lifetime of error-free data transmissions.
   5. Aluminum under-mold shield helps meet FCC requirements on KMI/RFI interference.
   6. Foil and braid shield complies with fully rated cable specifications reducing EMI/FRI interference.
   7. For Error-Free High-Performance Transmission.

Package Includes :

1 x UNO R3 Arduino.
1 x Cable for UNO.

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
