Description

STM32G070RBT6 is a mainstream microcontroller. It is based on a high-performance Arm® Cortex®-M0+ 32bit RISC core operating at upto 64MHz frequency. Offering a high level of integration, it is suitable for a wide range of applications in consumer, industrial and appliance domains and ready for the internet of things (IoT) solutions. This device incorporates a memory protection unit (MPU), high-speed embedded memories (128Kbytes of flash program memory with read protection, write protection, and 36Kbytes of SRAM), DMA and an extensive range of system functions, enhanced I/Os and peripherals. It has optimized dynamic consumption combined with a comprehensive set of power-saving modes that allow the design of low-power applications.
________________________________________
Features:
1. 128Kbyte flash memory size
2. 32Kbyte (with parity) or 36Kbyte (without parity) SRAM, (SysTick, 2 watchdog) timers
3. (1 (16bit) advance control, 5 (16bit) general purpose, 2 (16bit) basic) timers
4. (2 SPI, I²S, I²C, 4 USART) comm interface, RTC, 2 tamper pins
5. 59 GPIOs, 5 wakeup pins, 12bit ADC channels (16 ext + 3 int)
6. 64MHz maximum CPU frequency,
7. operating voltage range from 2.0V to 3.6V
8. Power-on/power-down reset (POR/PDR), low-power modes: sleep, stop, standby
9. Upto 16bit with hardware oversampling, conversion range from 0V to 3.6V
10. Two SPIs (32Mbit/s) with 4- to 16bit programmable bit frame, one multiplexed with I²S interface
11. Operating temperature range from -40°C to 85°C, LQFP64 package
________________________________________
Package Includes:

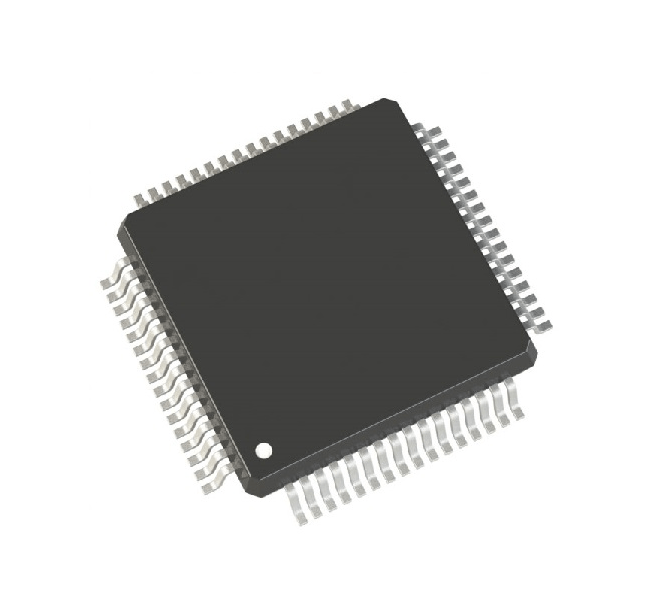

1 x STM32G070RBT6-STMICROELECTRONICS-ARM MCU, STM32 Family STM32G0 Series Microcontrollers, ARM Cortex-M0+, 32 bit, 64 MHz, 128 KB

Manufacturer: STMicroelectronics
Frequency Rating: 64MHz
Model STM32G070RBT6-STMICROELECTRONICS-ARM MCU, STM32 Family STM32G0 Series Microcontrollers, ARM Cortex-M0+, 32bit, 64 MHz, 128 KB
Flash Memory: 128kB
Interface: 2 SPI, I²S, I²C, 4 USART
GPIO 59
ADC Channels 12Channels
CPU Frequency 64MHz
Voltage Range (V) 2.0 to 3.6
Operating Temperature (°C) -40 to 85
Shipping Weight 0.001 kg
Shipping Dimensions 7 × 6 × 2 cm

15 Days Warranty
