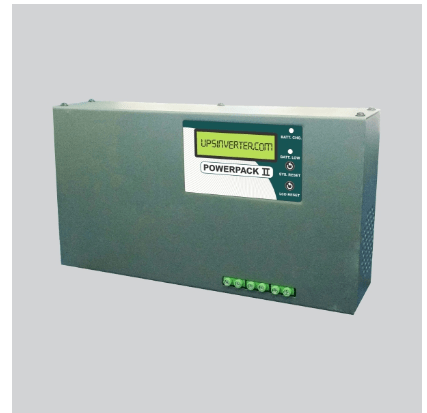

Solar Power Pack 12V/10A
Solar Power Pack is hybrid battery charger and DC power solution for DC equipment. It can provide power to battery and DC equipment using both solar as well as AC mains supply. Solar Power-pack uses micro-controller based MPPT algorithm to maximize energy from solar PV array. It has a number of output ports for fan, light, mobile charging etc.
- PV Charging Efficiency >90%
- LED Indication for Battery Charging and Battery Low.
- Visual Display Parameters.
- Temperature Compensation for Charging/Discharging.
- Small Size.
- Light weight.
- Solar Power-pack has the following protections.
PV Charging Efficiency >90%
Efficiency of PV charging is greater than 90%. Thus Solar Power Pack gives optimum performance.
LED Indication for Battery Charging and Battery Low
Solar Power-pack has LED indications for Battery charging and Battery low conditions.
Visual Display Parameters
The following parameters can be visually read from Solar Power-pack display: Battery volt, charging %, charging current : main status: solar voltage, solar current : load voltage, load current.
Temperature Compensation for Charging/Discharging
Solar Power Pack possesses Temperature compensation for charging/ discharging feature.
Small Size
Solar Power Pack has a very small size and is thus easy to handle.
Light Weight
Solar Power Pack has very light weight. Therefore it is very easy to use and install.
Solar Power Pack has the following Protections:
- Reverse Polarity of PV.
- Reverse Polarity of Battery.
- Over Current.
- Over Voltage.
- Over Load.
- Load Short Circuit.
- Deep Discharge.
- Input Surge Voltage.
- Protection Against Battery (night time leakage through PV)
- Load Protections (LVD,LVR,HVD,HVR)
Brand
UTL
SPECIFICATION
| TECHNICAL SPECIFICATION | ||||
| POWER PACK -2 HYBRID CHARGER | ||||
| INPUT | Solar | Panel Open Ckt Voltage, Voc | 21.6V | |
| MPPT Volt., Vmp | 16.4V | |||
| Max. Panel Wattage | 150W | |||
| Mains | AC I/P Volt. | 220V+/-10% | ||
| Max. Power | 150W | |||
| OUTPUT | Battery | Batt. Charging Volt. | 14V | |
| Batt. Charging Current(Max) | 10A | |||
| Ripple Volt. | 50mv | |||
| Load | Load volt | 12V | ||
| Max. load current | 3.5A | |||
| Mobile charger | Voltage | 5V | ||
| Current | 1A | |||
| Visual Display on LCD | Solar Voltage, Solar Current | |||
| Battery Voltage, Battery Percentage(%), Battery Current, | ||||
| Load Voltage, Load Current | ||||
| Mains status | ||||
| Temperature Compensation | Battery Charging | Y | ||
| Load Feature | LVD, LVR, HVD, HVR | Y | ||
| Data Logging | By USB | USB Interface(Optional) | ||
| PROTECTIONS | Battery Reverse | Y | ||
| Solar short Circuit | Y | |||
| Solar I/P Revese Polarity | Y | |||
| O/P Short Circuit | Y | |||
| O/p reverse polarity | Y | |||
| Deep discharge | Y | |||
| Protection agaist battery ( night time lickage current from PV) | y | |||
| Solar Charging Current limit | Y | |||
| LED status | LED1( Charging ON) | Glow Solid(GREEN) | ||
| LED2( Battery Low) | Glow Solid(RED) | |||
| Tranisent and Surge protection | Yes | |||
| Withstand Volt. | 1.5KV | |||
| Efficiency(at full Load) | >90% | |||
| Working Temperature | -10°C to 50°C | |||
| Control algorithm | Enhanced MPPT | |||
