Description

SL2310-Slkor-60V 3A 1.7W 125mΩ@4.5V,3A 2V@250uA 1 N-channel SOT-23 MOSFETs ROHS.

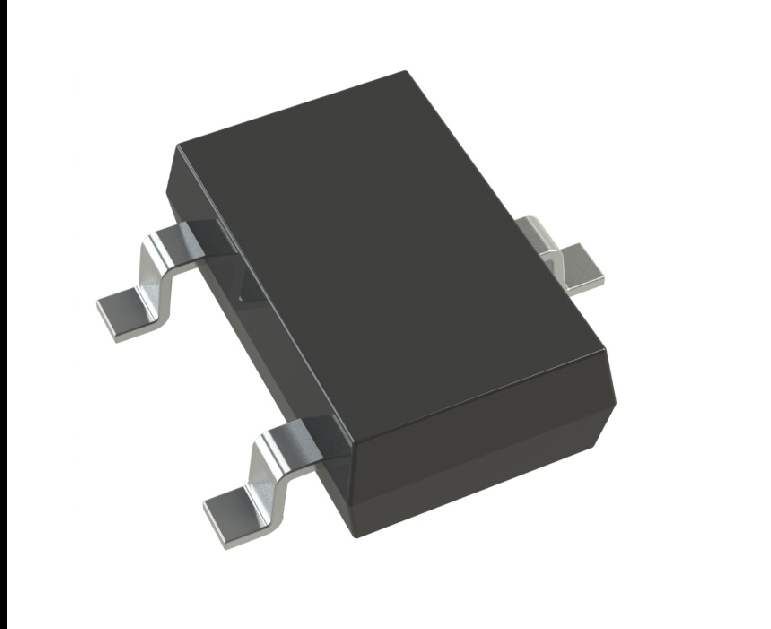

Note: Images for reference only.
________________________________________
Specifications:
Manufacturer: Slkor(SLKORMICRO Elec.)
Package: SOT-23
Drain Source Voltage (Vdss): 60V
Continuous Drain Current (Id): 3A
Power Dissipation (Pd): 1.7W
Drain Source On Resistance (RDS(on)@Vgs,Id): 125mΩ@4.5V,3A
Gate Threshold Voltage (Vgs(th)@Id): 2V@250uA
Reverse Transfer Capacitance (Crss@Vds): 19.5pF
Type: 1 N-channel
Input Capacitance (Ciss@Vds): 247pF@30V
Total Gate Charge (Qg@Vgs): 6nC@30V
Operating Temperature: -55℃~+150℃
For detailed specifications, please refer to datasheet in Attachments.
________________________________________
Package Includes:
1 x SL2310-Slkor-60V 3A 1.7W 125mΩ@4.5V,3A 2V@250uA 1 N-channel SOT-23 MOSFETs ROHS
1 Year Warranty
________________________________________
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
________________________________________
What voids the warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
