Description
Description

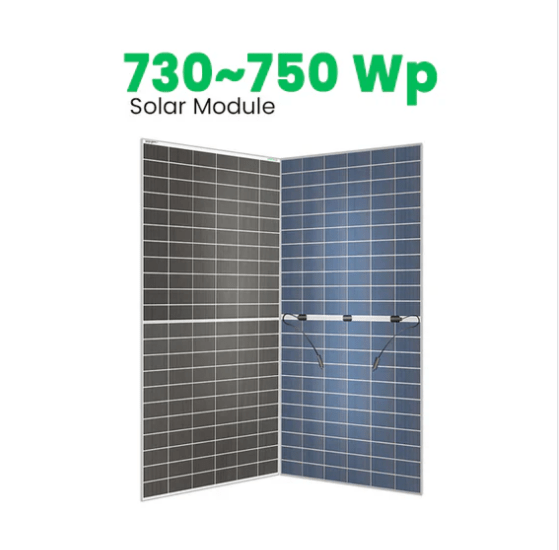

Loom Solar introduces the latest advancement in solar technology: the SHARK 730~750 Wp HJT Bifacial Double Glass Half-Cut Solar Panel, boasting an impressive 23.5% efficiency. This solar panel is specifically designed to cater to a wide range of sectors, including Utility-Scale/Ground-Mount Solar, Commercial & Industrial applications, and Residential Projects. The key features of the SHARK 730 Wp HJT PV Module include:
- Technology: Heterojunction Technology (HJT), N-type Bifacial Solar Cell, Zero Bus Bars
- Higher Power Gains & Lower Losses: Maximum efficiency of 23.50%, 85% +/- 10% bifaciality
- Reduced Degradation: 1% degradation in the first year, followed by 0.3% annually
- Extended Lifespan: 15 years product warranty and 30 years power warranty
- Superior Quality: Dual glass construction for enhanced durability and reliability
Electrical Specifications
| Output Power Pmax(W) | 730 |
| Maximum Power Voltage Vmp(V) | 43.00 |
| Maximum Power Current Imp(A) | 16.98 |
| Open Circuit Voltage VoC(V) | 51.00 |
| Short Circuit Current Isc(A) | 17.80 |
| Module Efficiency (%) | 23.50 |
| Power Tolerance (W) | 0~+5 |
| *STC: automatic mass AM1.5, irradiance 1000 W/m2, cell temprature 25°C |
Mechanical Specifications
| Number of Cells | 132 pieces (6*22) |

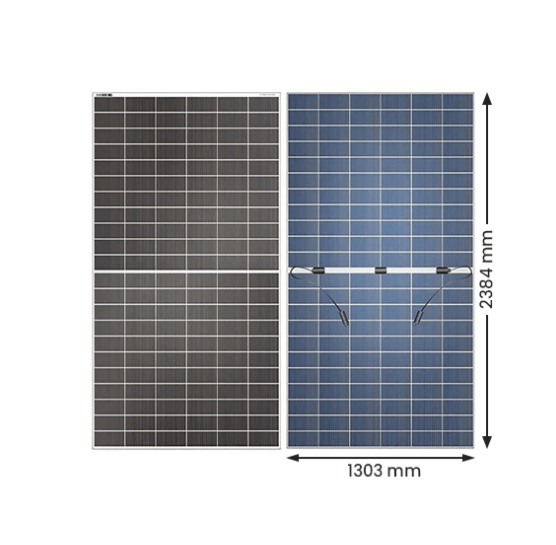

| Module Dimensions | 2384*1303*33mm |
| Weight | 38.3kg |
| Front Glass | 2.0mm, High transmission coated glass |
| Back Glass | 2.0mm, Semi-tempered glass |
| Frame | Anodized Aluminum alloy |
| Junction Box | IP68 rated |
| Cable | 4mm2 |
| No. of Diodes | 3 |
| Wind Pressure / Snow Pressure | 2400 Pa/5400 Pa |
| Connector | MC4 |
Warranty
The degradation in the first year is 1%, and from the second year ownards, the annual degradation does not exceed 0.30%
| Product warranty | 15 years |
| Performance warranty | 30 years |
