Description

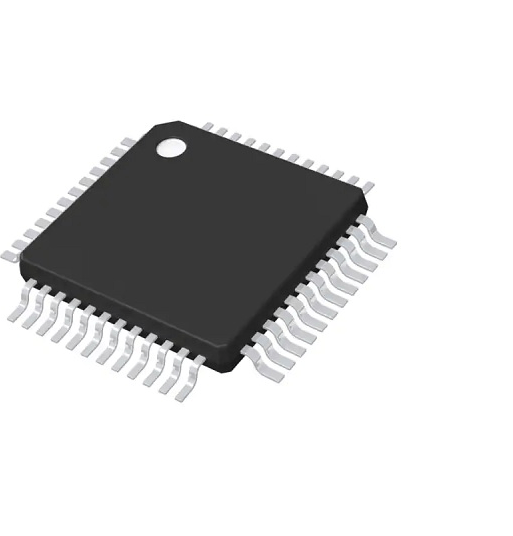

The PIC24FJ256GA705-I/PT from Microchip is a 16bit general purpose microcontroller with 256Kbyte flash and 16Kbyte RAM in 48 pin TQFP package. It offers various power down modes to keep the currents very low. The device features in-circuit serial programming (ICSP) and in-circuit emulation (ICE) via two pins, power-on reset (POR), brown-out reset (BOR) and oscillator start-up timer (OST), programmable low voltage detect (LVD), flexible watchdog timer (WDT) with its own RC oscillator for reliable operation. This microcontroller has three 16bit timers, two I2C, three variable width SPI, two LIN-USART/IrDA, twelve EPMP (address/data line), two configurable logic cell (CLC), real time clock and calendar (RTCC) and JTAG interfaces. Sleep and idle modes selectively shut down peripherals and/or core for substantial power reduction and fast wake-up
________________________________________
Note:
1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.

________________________________________
Package Includes:
1 x PIC24FJ256GA705- IC MICROCHIP
Manufacturer: MICROCHIP
Program Memory (KB) 256
Operating Temperature (°C) -40 to 85
SRAM Memory (KB) 16
Voltage Range (V) 2 to 3.6
Mounting Type: SMD/SMT
No. of Pins: 48
ADC Resolution 10 bit
Shipping Weight 0.01 kg
Shipping Dimensions 5 × 5 × 1 cm
