Description

The NE555P are precision timing circuits capable of producing accurate time delays or oscillations. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the stable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor. The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels can be altered by use of the control-voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset and the output is low.
________________________________________
Features:
1. Timing from microseconds to hours
2. A stable or monostable operation
3. Adjustable duty cycle
4. TTL compatible output can sink or source up to 200mA
________________________________________
Package Includes:

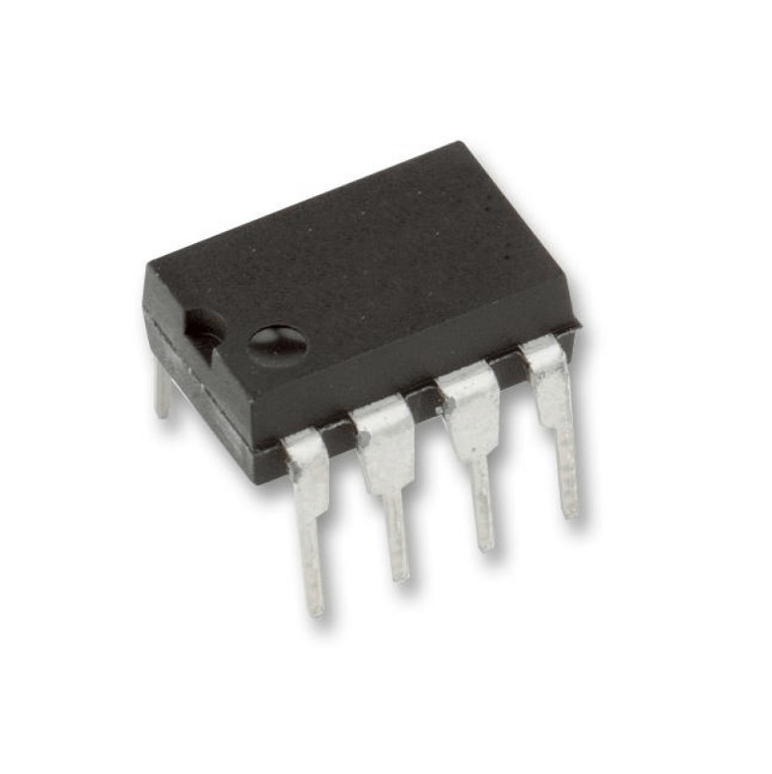

1 x NE555P TEXAS INSTRUMENTS Timer, Single, Precision, 100 kHz, PDIP-8
Manufacturer: Texas Instruments
Clock Frequency 500kHz
Min Supply Voltage 4.5V
Max. Supply Voltage (V) 16V
Case/Package: DIP
No. of Pins: 8
Shipping Weight 0.001 kg
Shipping Dimensions 5 × 4 × 1 cm
15 Days Warranty
________________________________________
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
________________________________________
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
