Description

The NE 555 P timer IC is a precision timing circuit capable of producing accurate time delays or oscillation. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the astable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor.
The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels can be altered by the use of the control voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset and the output is low.
________________________________________
Features:
1. Timing from microseconds to hours
2. A stable or monostable operation
3. Adjustable duty cycle
4. TTL compatible output can sink or source up to 200mA
5. Applications: Clock & Timing, Consumer Electronics, Aerospace, Defence, Military, Embedded Design & Development

________________________________________
Package Includes:

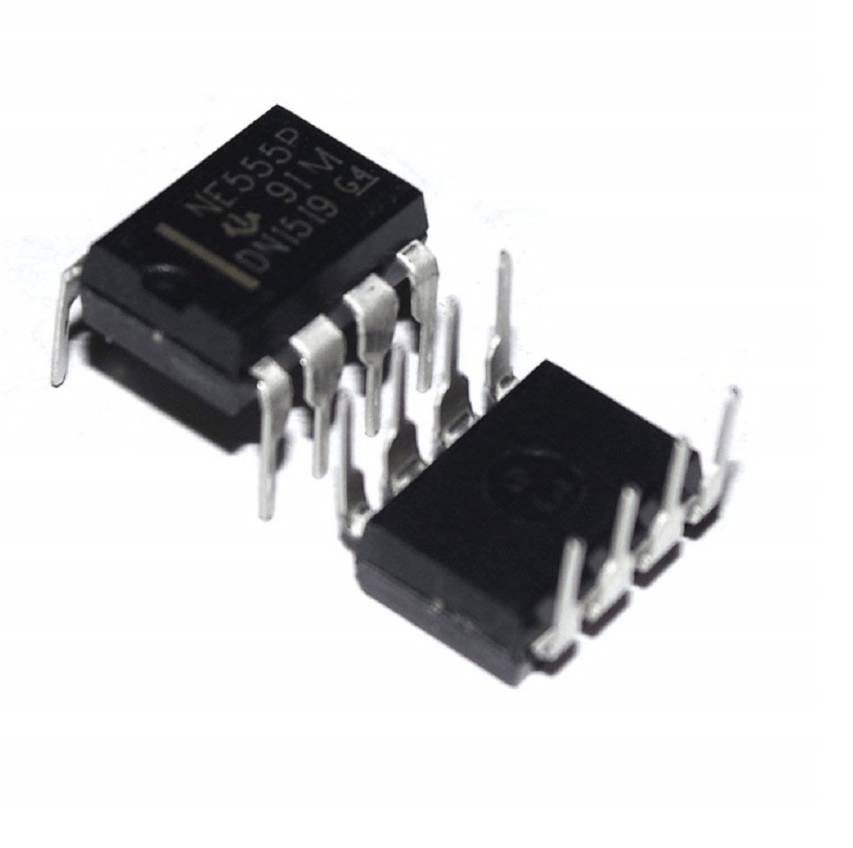

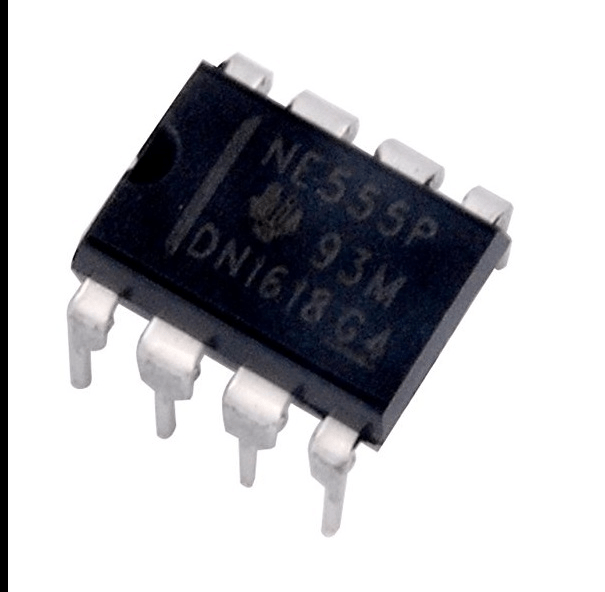

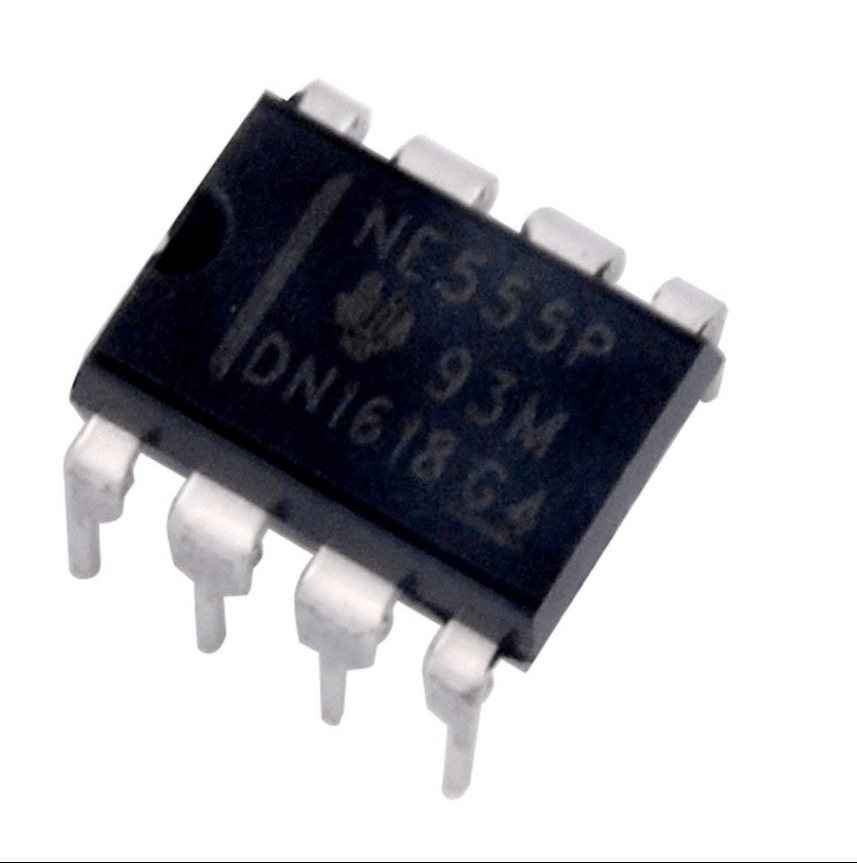

1 x NE 555 P PDIP-8 Timer IC (Pack of 5)
Manufacturer: Generic
Case/Package: PDIP 8
Min Supply Voltage 4.5
Max. Supply Voltage (V) 16
Product Type Timers & Support Products
Processor Series NE555
No. of Timers/Counters 1
Operating Temperature (°C) 0 to 70
Dimensions (L x W x H) mm 9.81 x 4.57 x 6.35
Mounting Type: Through Hole
Shipping Weight 0.09 kg
Shipping Dimensions 7 × 5 × 3 cm
15 Days Warranty Against Sealed Product
