Description

SKU: 162123

1. User-programmable digital filters for gyroscope, accelerometer, and temp sensor
2. Digital-output temperature sensor
3. 9-Axis MotionFusion by the on-chip digital motion processor (DMP)
4. Auxiliary master I2C bus for reading data from external sensors
5. Minimal cross-axis sensitivity between the accelerometer and gyroscope axes
6. MEMS structure hermetically sealed and bonded at the wafer level
7. 10,000 g shock tolerant
8. 400kHz fast mode I2C for communicating with all registers

₹ 332.00 + 18% GST

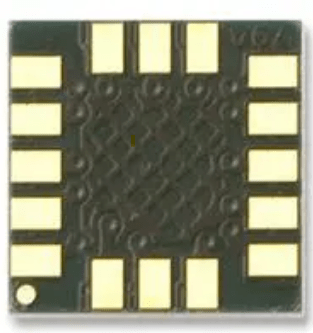

The MMA8451QT is a smart low-power, three-axis capacitive Micromachined Accelerometer with 14 bits of resolution. This accelerometer is packed with embedded functions with flexible user-programmable options, configurable to two interrupt pins. Embedded interrupt functions allow for overall power savings relieving the host processor from continuously polling data. There is access to both low-pass filtered data as well as high-pass filtered data, which minimizes the data analysis required for jolt detection and faster transitions. The device can be configured to generate inertial wake-up interrupt signals from any combination of the configurable embedded functions allowing the accelerometer to monitor events and remain in a low-power mode during periods of inactivity.For precision tracking of both fast and slow motions, the MPU-6050 features a user-programmable gyro full-scale range of ±250, ±500, ±1000, and ±2000°/sec (dps) and a user-programmable accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g.

NOTE: This product is available in two different dimensions. We’ll ship this according to it’s availability.

Features:

• 1.6 to 3.6V Interface Voltage
• ±2/±4/±8g Dynamically Selectable Full-scale
• Output Data Rates (ODR) from 1.56 to 800Hz
• 99μg/√Hz Noise
• 14-bit and 8-bit Digital Output
• I²C Digital Output Interface (Operates to 2.25MHz with 4.7kΩ Pull-up)
• Two Programmable Interrupt Pins for Seven Interrupt Sources
• Three Embedded Channels of Motion Detection, such as Freefall or Motion, Pulse and Jolt Detection
• Orientation (Portrait/Landscape) Detection with Programmable Hysteresis
• Automatic ODR Change for Auto-wake and Return to Sleep
• 32 Sample FIFO
• High Pass Filter Data Available per Sample and Through FIFO
• Self-test
• 6 to 165μA Current Consumption

Package Includes:

Sensing Range – Accelerometer

± 2g, ± 4g, ± 8g

Sensing Axis

X, Y, Z

Sensor Case / Package

QFN

Sensor Case Style

QFN

Supply Voltage Min

1.95V

Operating Temperature Min

-40°C

Qualification

–

MSL

MSL 1 – Unlimited

MEMS Sensor Output

Digital

Output Interface

I2C

No. of Pins

16Pins

Sensitivity Typ

1024counts/g, 2048counts/g, 4096counts/g

Supply Voltage Max

3.6V

Operating Temperature Max

85°C

Product Range

–

SVHC

Lead titanium trioxide (17-Jan-2022)

15 Days Warranty Against Sealed Product

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defect.  Replacement will be done against manufacturing defects.
