Description

The Mega 2560 is a powerful microcontroller development board based on the ATmega2560-16AU chip.It’s compatible with the Arduino IDE and offers extensive digital and analog I/O pins, making it suitable for a wide range of projects. This kit includes the board, a USB cable for programming and power, and a transparent acrylic case for protection and easy viewing

The Mega 2560 Atmega2560-16au compatible with Arduino is a micro-controller board based on the ATmega2560. It has a USB host interface to connect with Android based phones, base on the MAX3421e IC.

It has 54 digital input/output pins (of which 15 can be used as PWM outputs); 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator; a USB connection, a power jack, an ICSP header, and a reset button. The MEGA ADK is base on the Mega 2560. Similar to the Mega 2560 and Uno, it features an ATmega8U2 program as a USB-to-serial converter. Revision 3 of the Mega ADK board has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU(Device Firmware Upgrade) mode.

The board has the following new features:

• 1.0 pin-out: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In the future, shields will be compatible both with the board that uses the AVR, which operate with 5V and with the Arduino Due that operates with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
• Stronger RESET circuit.

The Mega Arduino R3 Android Accessory Development Kit (ADK) can be power via the USB connection or with an external power supply. The power source is select automatically. External (non-USB) power can come either from an AC-to-DC adapter (wall-wart) or battery. The adapter can be connected by plugging a 2.1mm center-positive plug into the board’s power jack.

Leads from a battery can be inserted in the GND and Vin pin headers of the POWER connector. Because the Mega R3 Android Accessory Development Kit (ADK) is a USB Host, the phone will attempt to draw power from it when it needs to charge. When the ADK is power over USB, 500mA total is available for the phone and board.

Note: If you are getting the error while uploading the code in the Arduino mega or not detecting the port need to upload the bootloader. You can refer to the attached video for the bootloader.

Specification and Features :

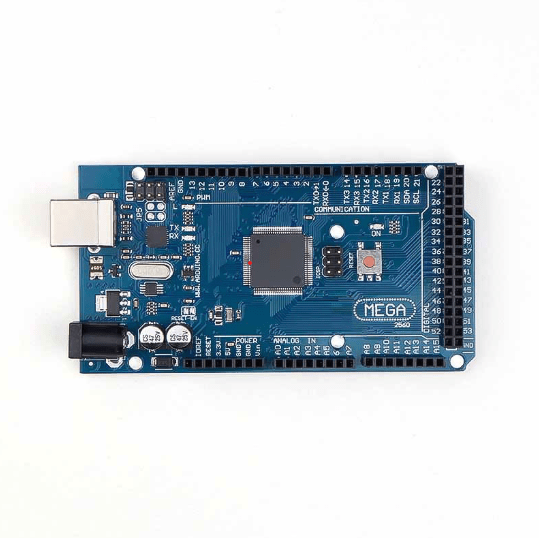

Mega 2560 Arduino:

1. Programmer: Atmel
2. ATmega2560 microcontroller.
3. 54 digital input/output terminals (14 of which have programmable PWM outputs).
4. 16 analog inputs.
5. 4 UARTs (hardware serial ports).
6. 16 MHz crystal clock.
7. Boot-loader to allow downloading of ‘sketches’ via USB without having to go through other external writers.
8. Powered by USB or via external PSU (not supplied). The device will automatically switch between power inputs.
9. Heavy gold plate construction.
10. Clock speed: 16 MHz.
11. Flash Memory: 256 KB of which 8 KB used by bootloader.
12. Operating voltage: 6 ~ 12v.
13. Dimensions: 110 x 53 x 15 mm.
14. Weight: 35 gm.

Cable for Mega 2560 Arduino:

1. Length 1 foot
2. Hot Pluggable.
3. Fully compatible with the PC.
4. Molded strain relief and PVC overmolding to ensure a lifetime of error-free data transmissions.
5. Aluminum under-mold shield helps meet FCC requirements on KMI/RFI interference.
6. Foil and braid shield complies with fully rated cable specifications reducing EMI/FRI interference.
7. For Error-Free High-Performance Transmission.

Transparent acrylic case:

1. Compatible with MEGA2560 R3 (unassemble).
2. The cover can be adjusted.
3. Color: Transparent.
4. Material: Acrylic.

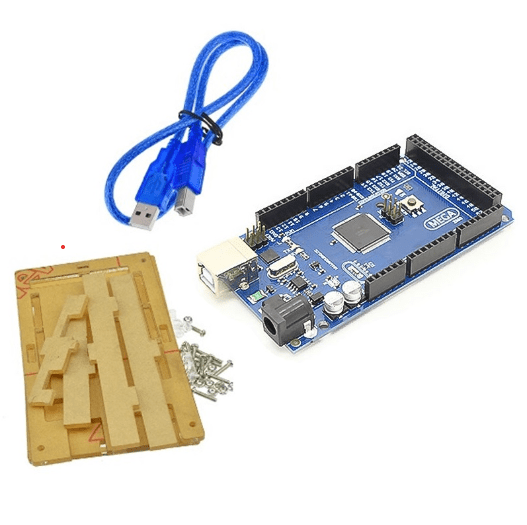

Package Includes :

1 x Mega 2560 Arduino ATMEGA2560-16AU Board

1 x Cable for Mega 2560

A Transparent Acrylic case for Mega 2560

15 Days Warranty
