Description

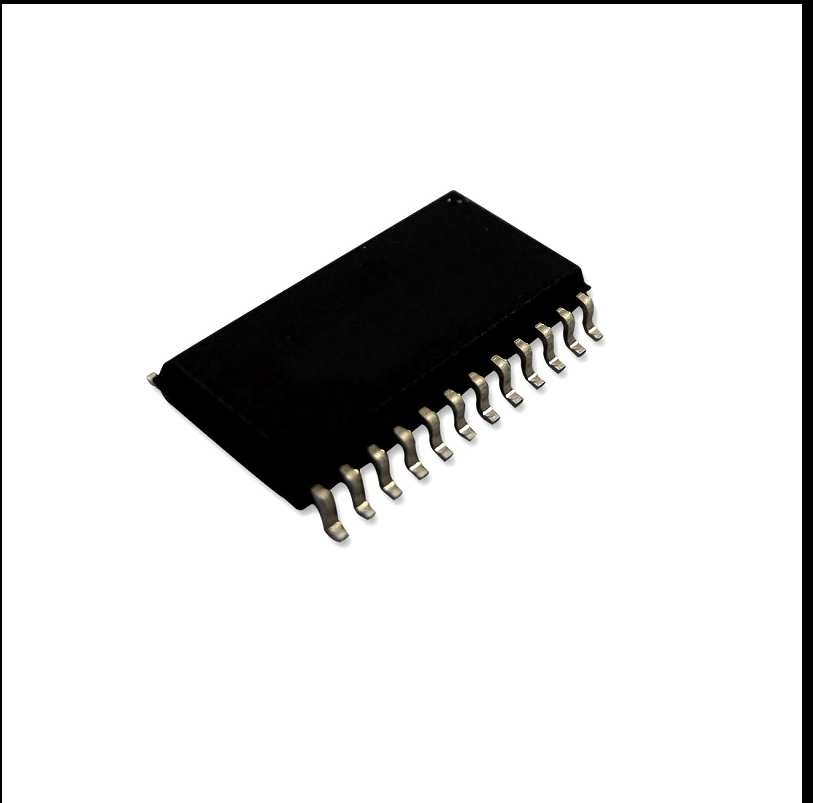

The MAX7219 – 8-Digit LED Display Driver IC SMD-24 Package is an integrated 8-digit LED display driver IC housed in a compact SMD-24 package, designed for controlling multi-digit LED displays. MAX7219 – 8-Digit LED Display Driver IC SMD-24 Package versatile chip is ideal for driving up to 8 digits of 7-segment LEDs, or up to 64 individual LEDs, with a simple serial interface for communication with microcontrollers. The MAX7219 incorporates a built-in BCD to 7-segment decoder, allowing for easy display of numeric or alphanumeric data. MAX7219 – 8-Digit LED Display Driver IC SMD-24 Package is features a low-power design, making it suitable for battery-operated devices, and supports dimming and brightness control for flexible display management.
________________________________________
Note:
1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.

________________________________________
Features:
1. 8-Digit Control: Drives up to 8 digits of 7-segment or 64 individual LEDs.
2. BCD to 7-Segment Decoding: Built-in decoding for easy control of numeric or alphanumeric displays.
3. Low Power Consumption: Optimized for minimal power usage, making it ideal for portable and battery-powered applications.
4. Brightness Control: Allows for adjustable brightness and dimming of the LED display.
5. Multiplexing Support: Reduces power consumption through multiplexing while maintaining display clarity.
________________________________________
Package Includes:
1 x MAX7219 – 8-Digit LED Display Driver IC SMD-24 Package
Manufacturer: Generic
Item Type: IC.
Model Driver IC
Model No.: MAX7219
Operating Supply Voltage 4~5.5V
Operating Supply Current 330mA
Current: 150µA
Shipping Weight 0.001 kg
Shipping Dimensions 4 × 4 × 1 cm
