Description

This is LP4056 SOP-8 LP Chips Battery Charging IC. The LP4056 is a complete constant-current/constant-voltage linear charger for single cell lithium-ion batteries. Its SOP package and low external component count make the LP4056 ideally suited for portable applications. Furthermore, the LP4056 can work within USB and wall adapter.
No blocking diode is required due to the internal PMOSFET architecture and have prevent to negative Charge Current Circuit. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V, and the charge current can be programmed externally with a single resistor. The LP4056 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached.
LP4056 Other features include current monitor, under voltage lockout, automatic recharge and two status pin to indicate charge termination and the presence of an input voltage.

Applications:
1. Cellular Telephones, PDAs, GPS
2. Charging Docks and Cradles
3. Digital Still Cameras, Portable Devices
4. USB Bus-Powered Chargers,Chargers

Note: Images are for reference only, the actual product may vary in terms of markings. Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.
________________________________________
Features:
1. Programmable Charge Current Up to 1000mA
2. No MOSFET, Sense Resistor or Blocking Diode Required
3. Complete Linear Charger in SOP-8
4. Constant-Current/Constant-Voltage
5. Charges Single Cell Li-Ion Batteries Directly from USB Port
6. Preset 4.2V Charge Voltage with 1.5% Accuracy
7. Automatic Recharge
8. BAT Pin Current: 1200mA
9. PROG Pin Current: 1200uA
________________________________________
Package Includes:

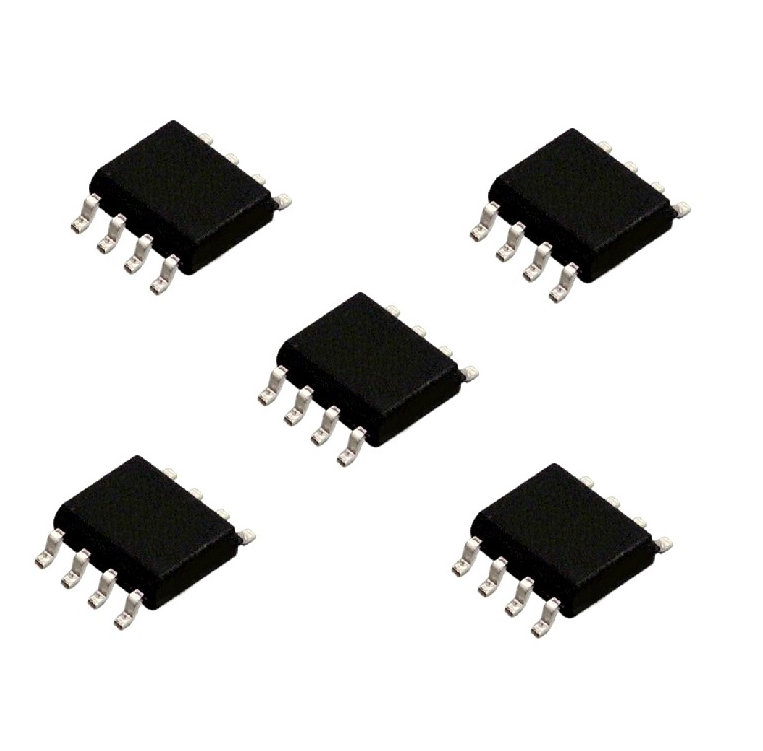

5 x LP4056 SOP-8 LP Chips Battery Charging IC (Pack of 5)
Manufacturer: Generic
Case/Package: SOP
Operating Temperature (°C) -40 °C to +85 °C
Supply Voltage Range -0.3V～8V
Length (mm): 6
Width (mm): 4
Height (mm): 2
Weight (g): 1 (Each)
Shipping Weight 0.01 kg
Shipping Dimensions 5 × 5 × 2 cm
