Description
Description

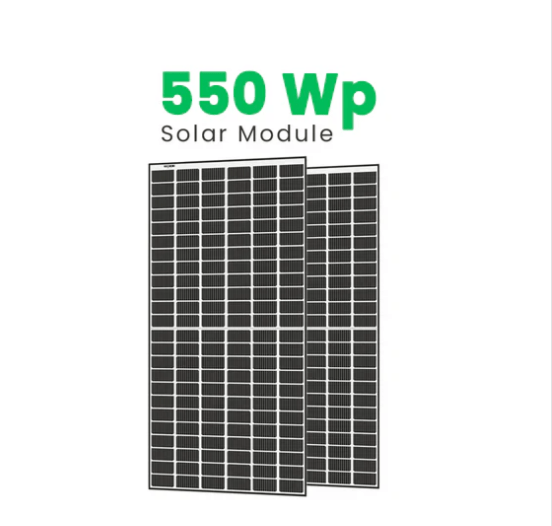

The Shark 550 Wp PV Module is one of the most powerful and advanced technology solar panels used in residential, commercial, industrial and agricultural applications. In addition to being able to generate extra electricity in minimum rooftop areas as well as cloudy weather, this module comprises 144 Mono Half Cut Solar Cells. It is suitable for both stand-alone and grid-connected rooftop solar systems.
- It is available in monofacial as well as bifacial technology
- 30%-50% more power in a smaller space
- Reducing shadow impact from 33% to 16.5%
Features Summary
- Excellent Reliability
- Lower Degradation
- Better Low-light Performance
- High Power & Efficiency
Technical Specifications
| Brand | Loom Solar |
| Nominal power | 550 Wp Bifacial |
| Open-circuit voltage (VoC) | 49.70 |
| Short-circuit current (Isc) | 13.75 |
| Voltage at maximum power (Vmp) | 42.50 |
| Current at maximum power (Imp) | 12.95 |
| Power reduction per °C | 0.45% |
| Voltage reduction per °C | 0.33% |

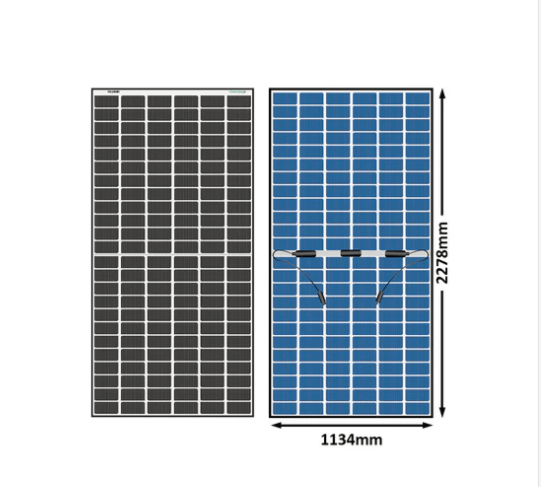

| Length | 2278 mm |
| Width | 1134 mm |
| Weight | 32 kg |
| Efficiency | 21.40% |
| No. of solar cell | 144 |
| Panel Technology | Mono Perc (latest) |
| Manufacturer Warranty | 10 years on Manufacturing defects |
| Performance Warranty | 25 Years (90% module efficiency after 10 years, 80% module efficiency after 25 years) |
| Additional Features | A+ Grade, anti-PID Mono cells |
| Cell Conversion efficiency > 20% |
| 1.4-meter wire for connection with MC4 connectors Inside |
Applications

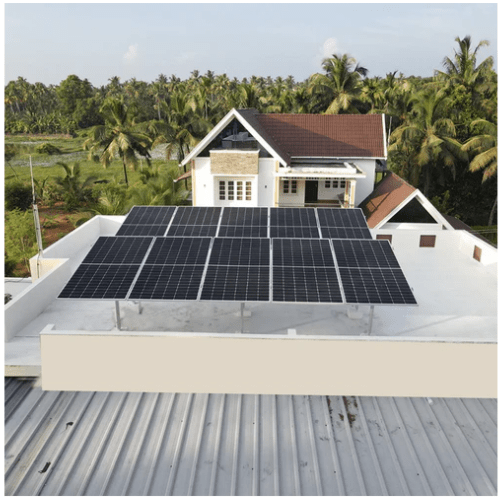

| Home Solar Solutions | Commercial & Industrial Solutions |
| Large Scale Solar Power Plants | Energy Storage Solutions |
