Loom Solar has launched a mini solar panel of 20-watt with a 12-volt battery that is charged with the help of sunlight. Being lightweight, this portable solar panel has many applications or uses. The panel is specially designed to charge small batteries up to 10 Ah or 10,000mAh. Loom Solar is India’s premium solar brand that manufactures and sells solar systems of various capacities including small solar panels. In the family of solar panels, mini solar panels are defined by their size (dimensions), which ranges from 0.6 x 2.55 inches to 14 x 18 inches (equivalent to 1.7 sq ft, i.e., comparable to a regular medium-sized home mirror).

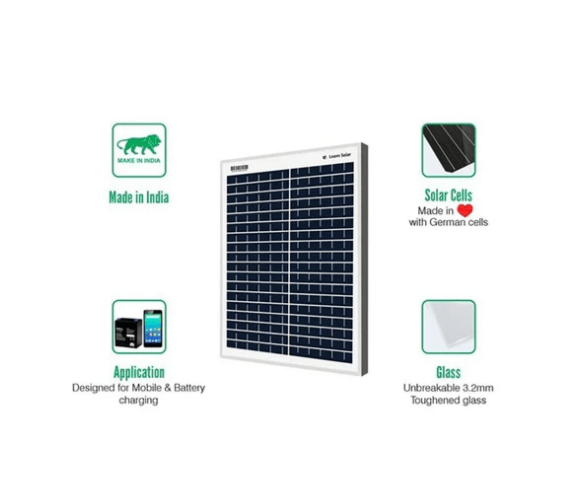

This (Do It Yourself ) DIY solar panel can be used for your school science projects, home lighting system or small battery charging. This finds many interesting uses for being small and lightweight & is easy to carry along. It weighs around 1.7 kg & comes with a junction box to connect the wires easily, aluminium frame comes with punched capsule-type mounting holes for easy mounting. Additional strength is given by high-durability tempered glass (3.2mm thickness), that can withstand the general impact of a cricket ball or hail storms.
Features Summary
Weight: 1.7 kg.
No. of cells: 36
Frame: Silver
Junction Box: IP65
Application: Home Lighting System & DIY Science Projects
Product Summary
| Output Power | 20 Watts |
| Operating Voltage | 12 Volt |
| Panel Technology | Poly Crystalline |
| Manufacturer Warranty | 5 years on Manufacturing defects |
| Performance Warranty | 25 Years |
| Additional Features | A+ Grade, anti-PID Poly Crystalline cells |
| Cell Conversion efficiency > 16% | |
| Compliance with IEC standards |
Technical Details
| Wattage (Wp) | 20 |
| Voltage at Max Power | 18.20 volts |
| Current at Max Power | 1.10 amps |
| Open Circuit Voltage | 22.40 volts |
| Short Circuit Current | 1.45 amps |
| No. of cells | 36 |
Shipping Details
| Weight | 1.7 Kg |

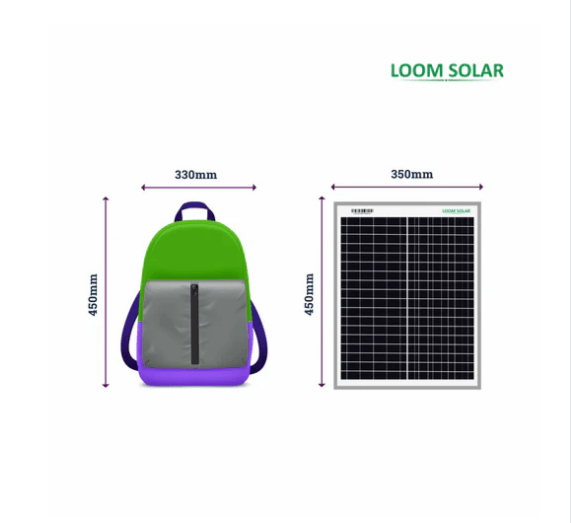

| Dimensions L x W x H | 450 x 350 x 22 mm |
