Description

The LM393 is a dual comparator IC designed for low power consumption, low offset voltage, and high performance in a variety of applications. This versatile IC operates from a wide supply voltage range, making it suitable for use in single-supply and dual-supply configurations. The LM393 features low input bias and offset currents, low power draw, and a broad input common-mode voltage range that includes ground
Note:

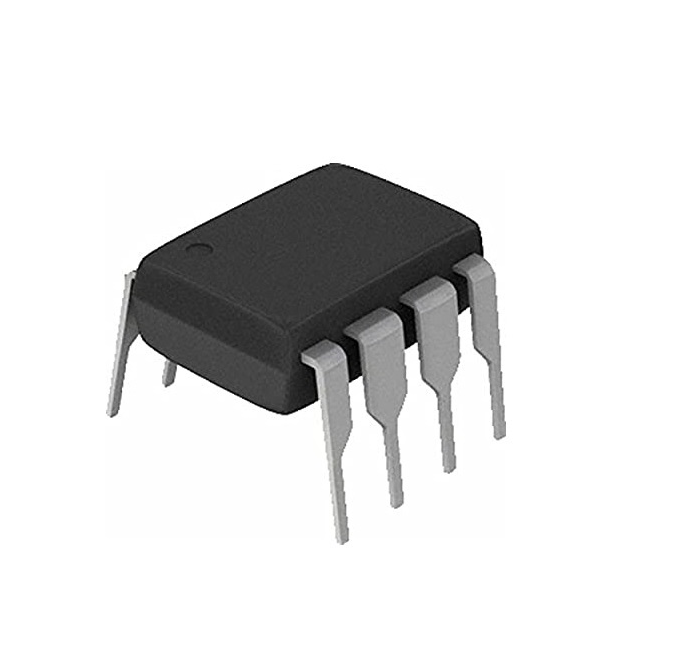

1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.

________________________________________
Features :
1. Wide voltage range: 2 V to 36 V (single), ±1 V to ±18 V (dual)
2. Low power: 0.45 mA typical current
3. Precision: Low input bias (20 nA) and offset (±1 mV)
4. Ground-compatible input
5. Low output saturation: 80 mV at 4 mA
6. Logic compatible: TTL, CMOS, etc.
________________________________________
Package Includes:
1 x LM393 Low Power Low Offset Voltage Dual Comparator IC DIP-8 Package
Manufacturer: Generic
Model Type: IC
Case/Package: DIP-8
Supply Current (mA) 0.45
Voltage Range (V) 2 V to 36 V (single), ±1 V to ±18 V (dual)
Shipping Weight 0.001 kg
Shipping Dimensions 4 × 4 × 1 cm
