Description

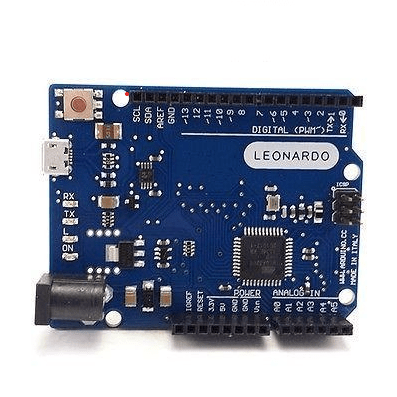

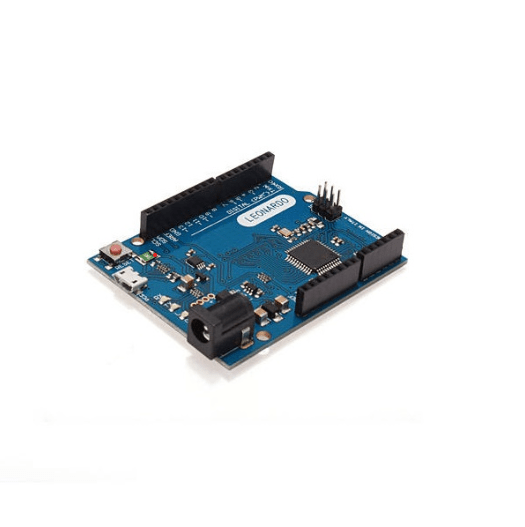

The Leonardo R3 Board is a microcontroller board based on the ATmega32u4 microcontroller. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. It is compatible with Arduino software.
The Leonardo R3 Board Micro-USB compatible with Arduino is a micro-controller board base on the ATmega32u4. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs); a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button.
It contains everything need to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.
The Leonardo R3 Board differs from all preceding boards in that the ATmega32u4 has built-in USB communication; eliminating the need for a secondary processor.
This allows the Leonardo to appear to a connected computer as a mouse and keyboard; in addition to a virtual (CDC) serial / COM port. It also has other implications for the behavior of the board.
Why Choose Original Arduino Boards Over Clones?
Original Arduino boards offer superior quality, reliability, and long-term support, ensuring your projects
run smoothly and efficiently. Here’s a quick comparison:
Pinout Diagram:
Features :
- It’s a 100% pro micro Arduino Compatible Board.
- Chip: ATmega32u4
- Board Mode: LEONARDO R3
- Color: As shown in the pictures
Package Includes :
1 x Leonardo R3 Board
| Item Type: | Development Board |
| Board Type: | Leonardo |
| Input Voltage (V): | 6V-20V |
| Analog I/O Pins | 12 |
| Digital I/O Pins | 20 |
| PWM Digital I/O Pins | 7 |
| Clock Speed | 16 MHz |
| Flash Memory: | 32 KB |
| SRAM | 2.5 |
| EEPROM | 1 KB |
| Dimensions (L x W x H) mm | 68x54x20 |
| Weight (g): | 20 |
| Shipping Weight | 0.022 kg |
| Shipping Dimensions | 10 × 8 × 3 cm |
15 Days Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
