Description

The IR2104 is a high voltage, high speed power MOSFET and IGBT driver with dependent high- and low- side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic.
The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates from 10 V to 600 V.
Note: Image may vary from actual product in terms of Manufacturer/Brand name according to the availability.
________________________________________
Features:
1. Floating channel designed for bootstrap operation
2. Fully operational to +600 V
3. Tolerant to negative transient voltage, dV/dt immune
4. Gate drive supply range from 10 V to 20 V
5. Undervoltage lockout
6. 3.3 V, 5 V, and 15 V input logic compatible
7. Cross-conduction prevention logic
8. Internally set deadtime
9. High-side output in phase with input
10. Shutdown input turns off both channels
11. Matched propagation delay for both channels
For detailed specifications and diagrams, please go through Datasheet in Attachments.
________________________________________
Package Includes:

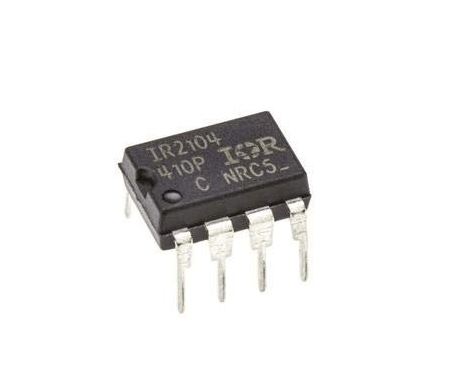

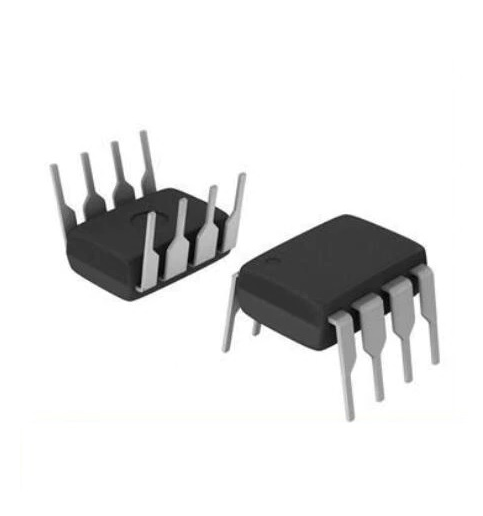

1 x IR2104 PDIP-8 Gate Driver
IC Type: Driver
Case/Package: PDIP 8
Mounting Type: Through Hole
No. of Drivers 2
No. of Outputs: 2
Max. Supply Voltage (V) 20
Min Supply Voltage 10
Max. Output Current (A) 130 mA
Rise Time 170 ns
Fall Time 90 ns
Propogation Delay-Max (ns) 820
Logic Type CMOS, TTL
Operating Temperature (°C) -40 to 125
Max. Turn Off Delay (nS): 150
Max. Turn-on Delay (nS): 650
Dimensions (L x W x H) mm 10.92 x 7.11 x 5.33
Shipping Weight 0.005 kg
Shipping Dimensions 8 × 6 × 3 cm
15 Days Warranty Against Sealed Product
________________________________________
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defect. Replacement will be done against manufacturing defects.
________________________________________
What voids the warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
________________________________________
Warranty Against Sealed Product:
This product comes with manufacturer seal so, warranty Policy shall cover only those issues pertaining to the manufacturing defects in the product. In any other case, No return will be accepted if the seal is broken.
