Description

ESP32 is a single 2.4 GHz Wi-Fi-and-Bluetooth combo chip designed with the TSMC ultra-low-power 40 nm technology. It is designed to achieve the best power and RF performance, versatility, and reliability in a wide variety of applications and power scenarios.
Ideal for low-power applications, the ESP32 SoC features fine-grained clock gating, multiple power modes, and dynamic power scaling. A low duty cycle is used to minimize the amount of energy that the ESP32 SoC expends. The output of the power amplifier is also adjustable, thus contributing to an optimal trade-off between communication range, data rate, and power consumption. The ESP32 SoC is highly-integrated with in-built antenna switches, power amplifiers, low-noise receive amplifiers, and power management modules. ESP32 adds priceless functionality and versatility to IoT applications with minimal Printed Circuit Board (PCB) requirements.
Pin Diagram
________________________________________
Features:

________________________________________
Package Includes:

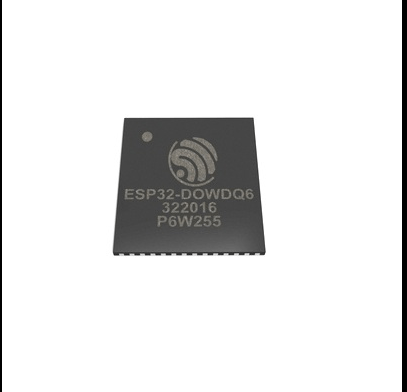

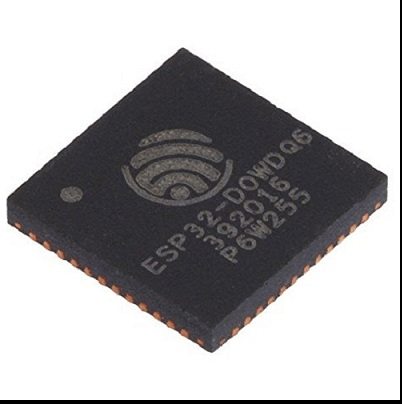

1 x ESP32-D0WDQ6 IC QFN48

Manufacturer: Espressif
Frequency Rating: 2.4GHz
Case/Package: QFN 48
Core: LX6
Operating Frequency (Hz): 2.4 GHz
Maximum Data Rate 150 Mb/s
Output Power 20 dBm
Sensitivity (dBm): – 97 dBm
Operating Supply Voltage 2.3 V to 3.6 V
Supply Current Receiving 95 mA to 100 mA
Supply Current Transmitting 240 mA
Program Memory (KB) 448 kB
Program Memory Type Data ROM Size and Type
Data RAM size and Type 16 kB, 520 kB
Data RAM Type SRAM
Interface Type CAN, I2C, I2S, SDIO, SPI, UART
Mounting Style SMD/SMT
ADC Resolution 12Bit
Data Bus Width: 32bit
Maximum Clock Frequency 240 MHz
No. of ADC Channels 18 Channel
No. of Timers 2 Timer
Product Type RF System on a Chip – SoC
Net Weight 97.500 mg
Shipping Weight 0.05 kg
Shipping Dimensions 12 × 8 × 1 cm

15 Days Warranty Against Sealed Product
