Description

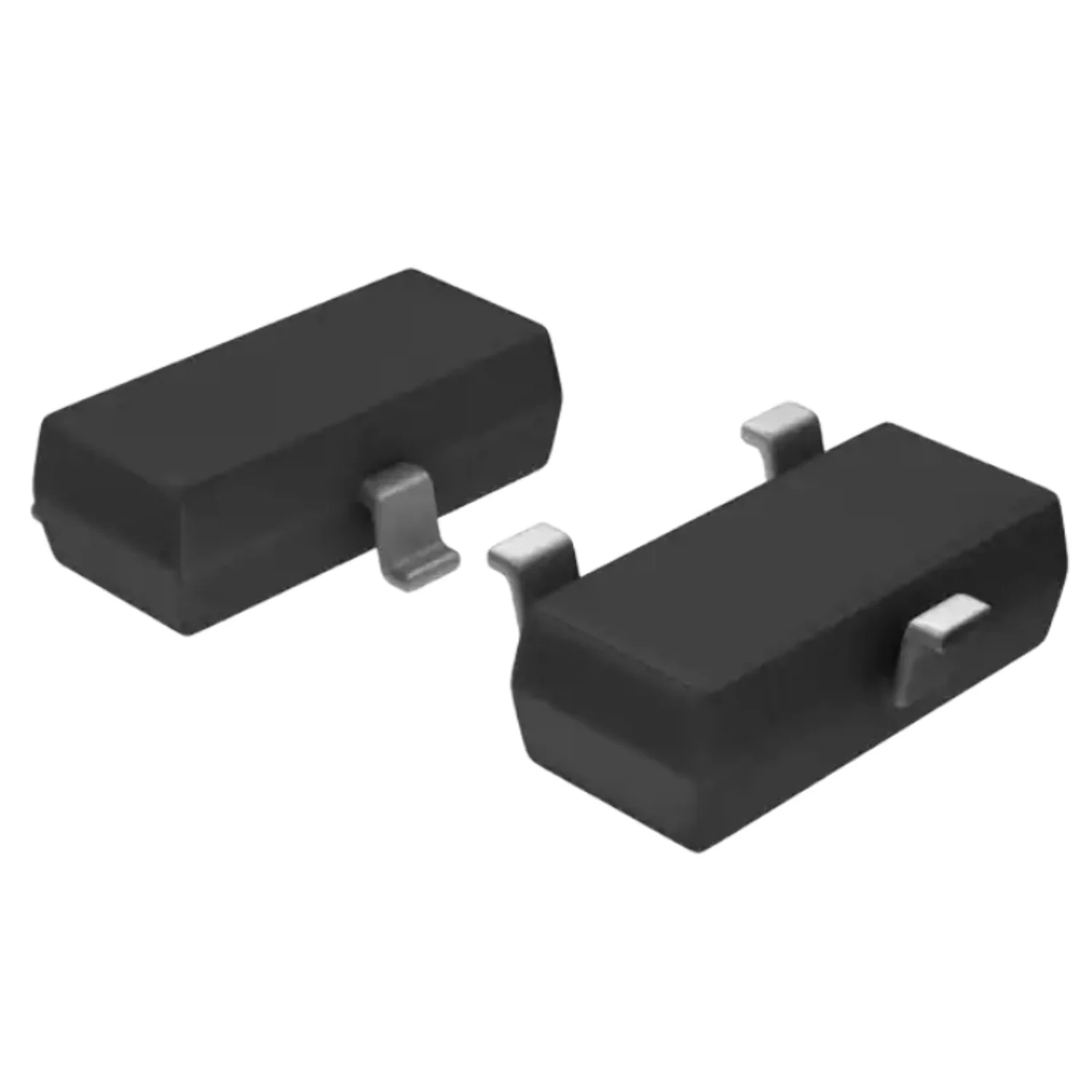

The BAV70 is a surface mount switching diode in a SOT-23 package, featuring a common cathode configuration with two diodes.It has a voltage rating of 75V, a low forward voltage drop of 1.25V, a fast reverse recovery time of 4ns, and a forward current of 200mA. This pair of diodes is RoHS compliant, making it suitable for various switching applications.

Specifications:

Manufacturer: Slkor(SLKORMICRO Elec.)
Package: SOT-23
Reverse Voltage (Vr): 75V
Operating Temperature: –
Diode Configuration: 1 pair of common cathodes
Forward Voltage (Vf@If): 1.25V
Reverse Recovery Time (trr): 4ns
Reverse Leakage Current (Ir): 2.5uA
Rectified Current: 200mA

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x BAV70-Slkor-75V 1 pair of common cathodes 1.25V 4ns 200mA SOT-23 Switching Diodes ROHS

1 Year Warranty

This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
