Description

The high-performance Atmel picoPower 8-bit AVR RISC-based microcontroller combines 32KB ISP flash memory with read-while-write capabilities, 1024B EEPROM, 2KB SRAM, 23 general-purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented 2-wire serial interface, SPI serial port, a 6-channel 10-bit A/D converter (8-channels in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, and five software selectable power saving modes. The device operates between 1.8-5.5 volts.
Note:

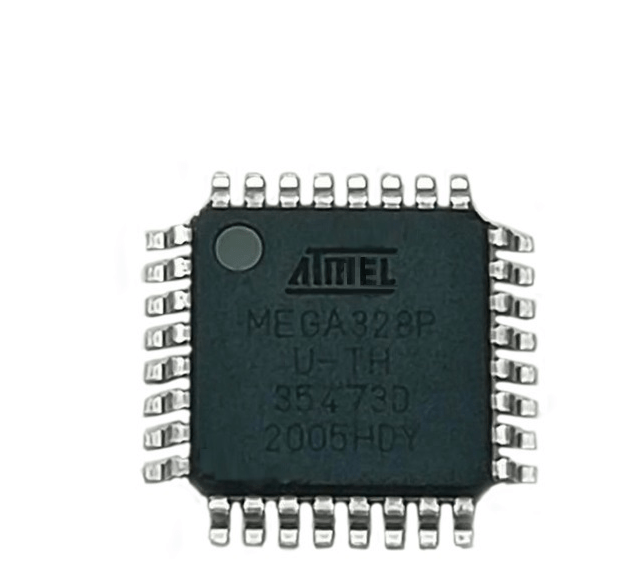

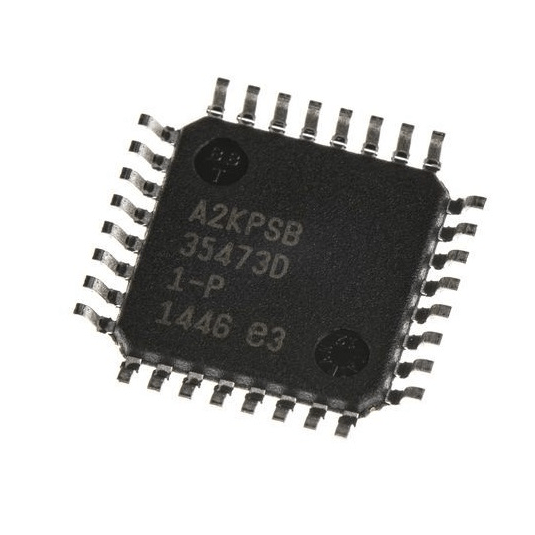

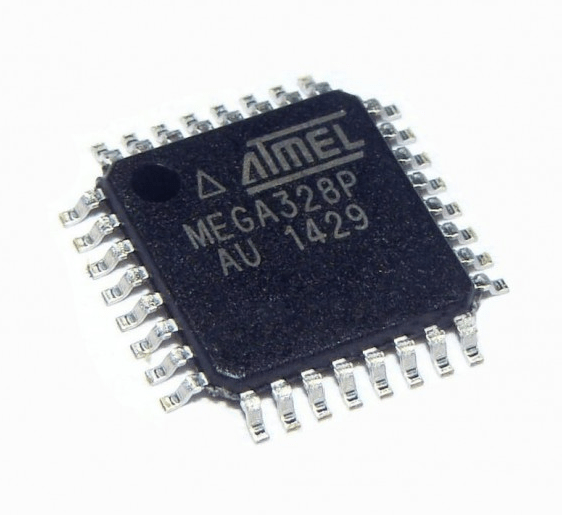

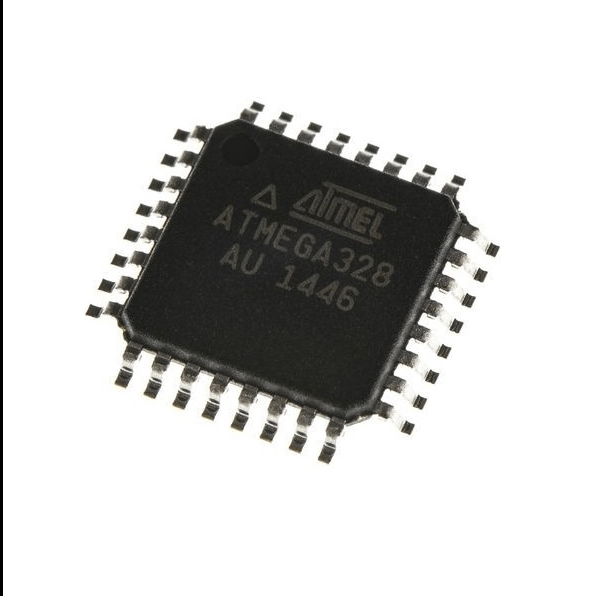

1. Images are for reference only. The actual product may differ from the images in terms of markings.
2. Please note that the available IC model for this type is328P U-TH
________________________________________
Features:
1. High Performance, Low Power Atmel®AVR® 8-Bit Microcontroller Family
2. Advanced RISC Architecture
3. High Endurance Non-volatile Memory Segments
4. Atmel® QTouch® library support
5. Peripheral Features
6. Special Microcontroller Features

________________________________________
Package Includes:
1 x ATmega328P U-TH Microcontroller
Manufacturer: Generic
Frequency Rating: 20MHz
Case/Package: TQFP 32
Min Supply Voltage 2.7
Max. Supply Voltage (V) 5.5
Product Type 8-bit Microcontrollers – MCU
Processor Series ATmega328P
Mounting Type: SMD/SMT
Max. Clock Frequency (MHz) 20
Data Bus Width: 8bit
No. of I/Os 23
Interface Type I2C, SPI, USART
Program Memory (KB) 32
Data RAM size and Type 2kB SRAM
Data ROM Size and Type 1024 B EEPROM
No. of Timers/Counters 3 Timer
Operating Temperature (°C) -24 to 84
Dimensions (L x W x H) mm 7 x 7 x 1
Shipping Weight 0.007 kg
Shipping Dimensions 8 × 6 × 4 cm

15 Days Warranty
________________________________________
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
________________________________________
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
