Description

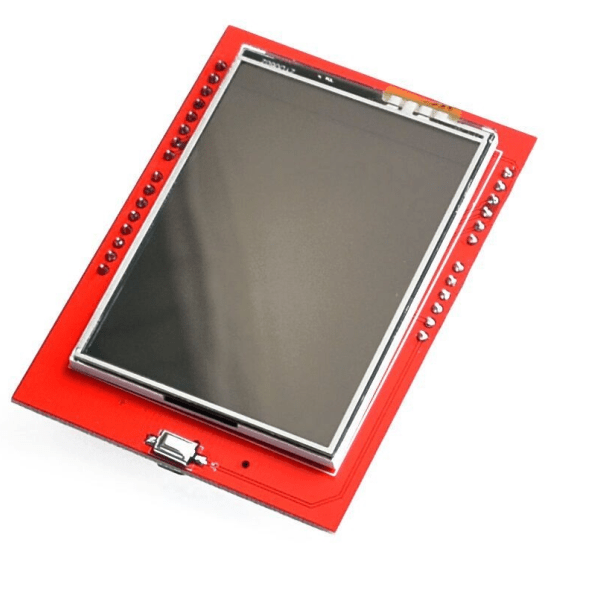

2.4″ Inch Touch Screen TFT Display Shield adds a touch up to your Arduino project with a beautiful large touchscreen display shield with built-in microSD card connection. This TFT display is big (2.4″ diagonal) bright and colorful! 240×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display.
Features:
- 2.4″ diagonal Touch LCD TFT display
- 240×320 resolution, 18-bit (262,000) color
- 8-bit digital interface, plus 4 control lines
- 5V compatible! Use with 3.3V or 5V logic
- Onboard 3.3V 300mA LDO regulator
- Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3, and analog 4 and 5. Pin 12 is available if not using the microSD
- Works with any Arduino Uno and mega compatible boards
Package Includes:
1 x 2.4″ Inch Touch Screen TFT Display Shield for Arduino UNO Mega
1 x Stylus Pen
| Working temperature | -30°C ~ 70°C |
| Compatible boards | Arduino UNO and Mega |
| Length(mm) | 72 |
| Width(mm) | 52 |
| Height(mm) | 12 |
| Shipping Weight | 0.1 kg |
| Shipping Dimensions | 5 × 5 × 1 cm |
15 Days Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
