Description

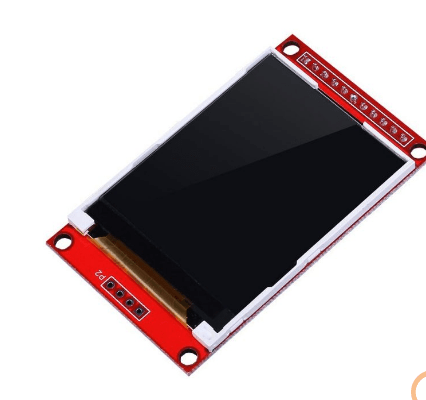

The 2.0 Inch SPI TFT LCD Color Screen Module is a versatile display module that can be used in a wide range of applications. It features a 2.0 inch TFT LCD screen with a resolution of 176 x 220 pixels, providing clear and vibrant images. The module is based on the ILI9225 controller chip, which supports SPI serial interface for easy communication with microcontrollers. It is ideal for projects that require a compact and high-quality display solution

This lovely little 2.0 Inch SPI TFT LCD Color Screen Module ILI9225 Serial Interface 176 x 220 display breakout is the best way to add a small, colorful and bright display to any project.

Since the 2.0 Inch SPI TFT LCD Color Screen Module display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!

The 2.0 inch TFT display has 176×220 color pixels. Unlike the low cost “Nokia 6110” and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT! The TFT driver (ILI9225) can display full 18-bit color (262,144 shades!).

And the LCD will always come with the same driver chip so there are no worries that your code will not work from one to the other.

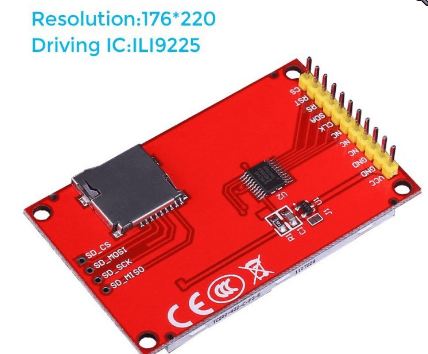

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic.

We also had a little space so we placed a microSD card holder so you can easily load full-color bitmaps from a FAT16/FAT32 formatted microSD card.

Features :

1. 1.8-inch serial SPI color display module
2. Support analog SPI and hardware SPI
3. The LCD has a wide viewing angle, the contrast is also very suitable.
4. Good quality display.

Package includes:

1 x 2.0 Inch SPI TFT LCD Color Screen Module

Buy other components to attach to this LCD Display

Arduino Boards
Raspberry Pi
Dupont Cables
